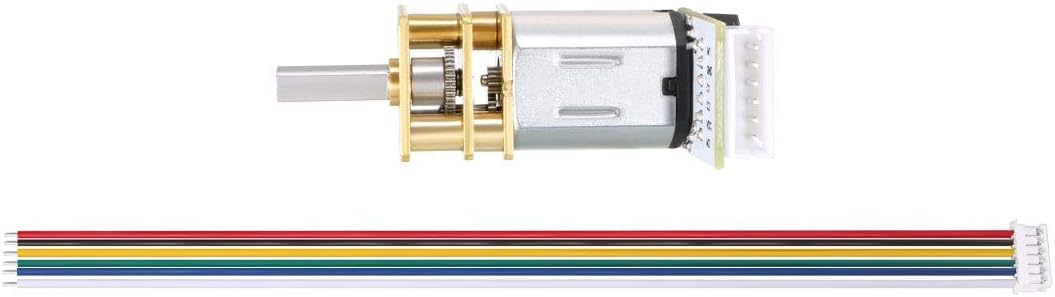

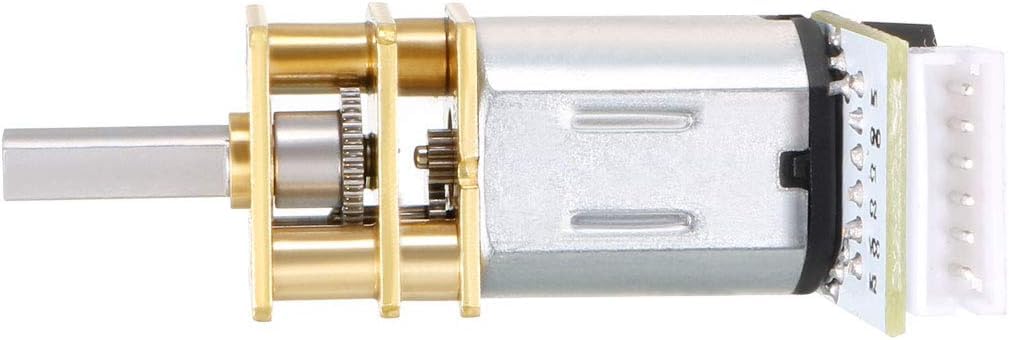

REES52 GA12-N20-12v 1000 RPM ALL Metal Gear Micro DC Encoder Motor with Precious Metal Brush
Brand: REES52
Product Overview

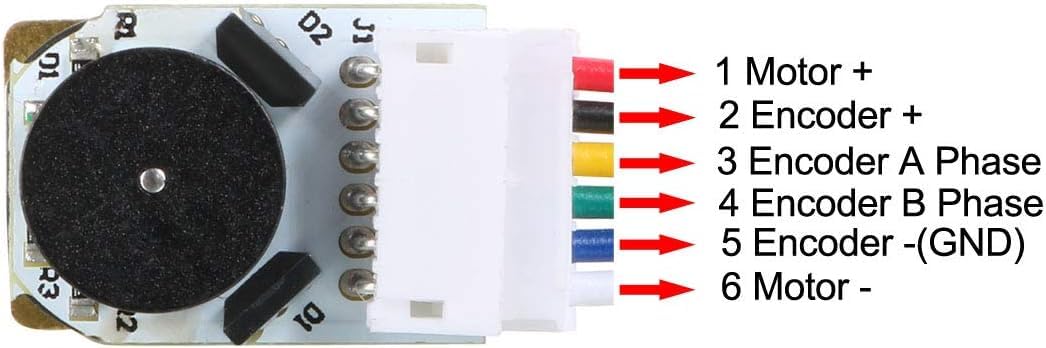

Specifications: Model No: GA12 N20 Motor Type: Center Shaft DC Encoder Geared Motor Base Motor RPM: 30000 RPM at output shaft: 1000RPM Rated Voltage: 12V DC Gear ratio: 1:30 No Load Current: 10 mA Rated Current: 40 mA Stall Current: 1 A Rated Torque: 0.1 Kgcm Stall Torque: 2 Kgcm Shaft Type: D-type Single Side Shaft Diameter (mm): 3mm Shaft Length (mm) : 9mm Weight (gm): 15 Encoder Connections: Red - Motor + White - Motor - Yellow - Encoder B Green - Encoder A Black - Vcc (5 V) Blue - Gnd Package Includes: 1 x GA12-N20 12V 1000RPM Micro DC Reducer Motor Encoder with Wire
Product Details
This is a light-weight, high-torque N20 12v 1000 RPM Metal Gear Micro DC Encoder Motor with Precious Metal Brush. It is suitable for various industrial, home appliance and hobby applications. It has an all-metal gearbox assembly that provides amazing torque for its size. The motor uses precious metal brushes instead of carbon brushes, which increases its working life.
Compared to other motors of similar size, with metal or plastic gears, the N20 all-metal geared motor has a much higher torque-to-size ratio. It outperforms the BO motor series 1 and series 2 and the centre shaft 12 V motors in terms of torque, sturdiness, reliability and working life. The specifications below confirm this.
The N20 motor is ideal for small IOT (Industrial IOT) products such as electric locks, webcam pan-tilt and other similar actuators that need good torque in limited space and weight. For hobby projects such as robotic cars, micromouse, electric boats and other small motor-related projects, where power consumption and optimal pricing are important, the N20 all-metal gear motor is a perfect fit.
