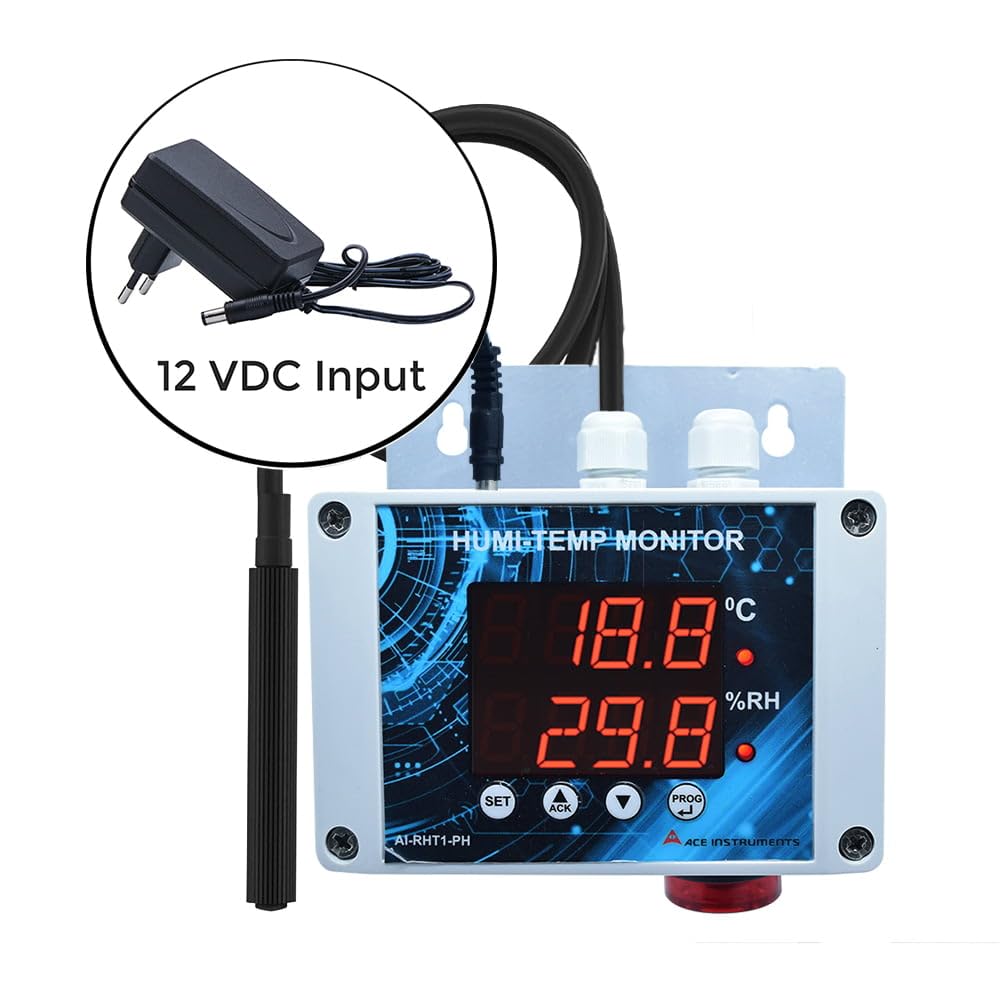

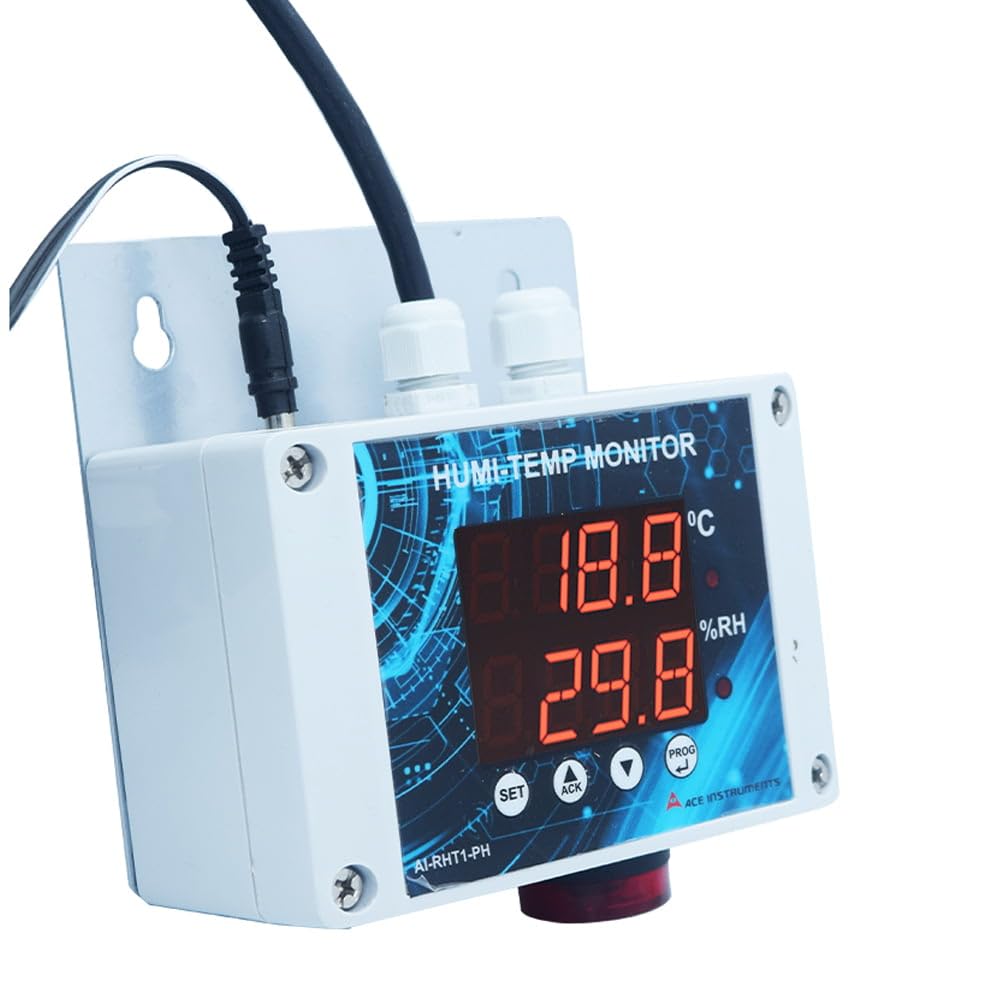

*Ships Within 1-Day* Wall Mounted Temperature and Humidity Alarm Monitor for Server Rooms,Pharmaceuticals,Laboratories Along with Calibration Certificate Model: AI-RHTx Basic
Brand: Instrukart
Product Overview
Server room temperature Monitor is a wall mounting device that simultaneously measure and alert the user upon set point violation. This easy to use instruments makes it handy to be installed in IT Infrastructure Facilities, Hospitals, Blood Banks, Data centre and server room applications. Features: Wall mounting display unit with 2 lines 4 digit RED 7 Segment LED Display. Optional RS 485 Modbus Protocol Communication Optional 4-20mA output for both Temperature and Humidity Standard Sensor wire length of 3 meters. Integrated programmable buzzer alarm for any parameter violation.
Product Details
Model: AI-RHTx
Measuring Parameters: Temperature, Humidity
Temperature Range: 0°C 50 °C ; Accuracy : ± 0.5°C; Resolution: 0.1°C
Humidity Range: 0.0 to 100% RH ( Non Condensing ) ; Accuracy : ± 1.8% for 10 to 95% RH, ±2% for all other ranges; Resolution: 0.1%RH Display: 4 digits of Temperature, 0.4” Height, Red LED Display ; 4 digits for humidity(% RH) ; 0.4” Height, RED Light Display
Wall mounting ; Cable Length : Connecting cable, pre wired 3 metres Extension between display monitor and sensor
Enclosure : Wall mounting type ABS Plastic enclosure with Wall Bracket
Communication: RS-485 for connecting to SCADA (optional please contact store)
Acknowledgement Key: Provided for user to acknowledge the alarm manually, thus avoiding continuous buzzer alarm sound & user attention
Alarm Type: In built buzzer for Low & High Limit upon temp & humidity set point violation
Alarm Limit: User Configurable, Freely programmable from 4 front keypad
Protection Class: IP-65
Power supply : 12 vDC by way of 230 VAC , 50Hz Adaptor
Supply scope: 1 unit of AI-RHTx Temperature and Humidity Monitor, Power Adaptor with calibration certificate and Instruction manual
Application: Server Rooms, Laboratories, Bio Labs,IT Offices, Pharmaceuticals Industries.
