KUSAM-MECO 5-4/5 DIGITS HAND HELD TRMS DIGITAL MULTIMETER 50000/500,000 COUNTS WITH PC INTERFACE (14 FUNCTIONS 43 RANGES)
Brand: KUSAM-MECO
Product Overview

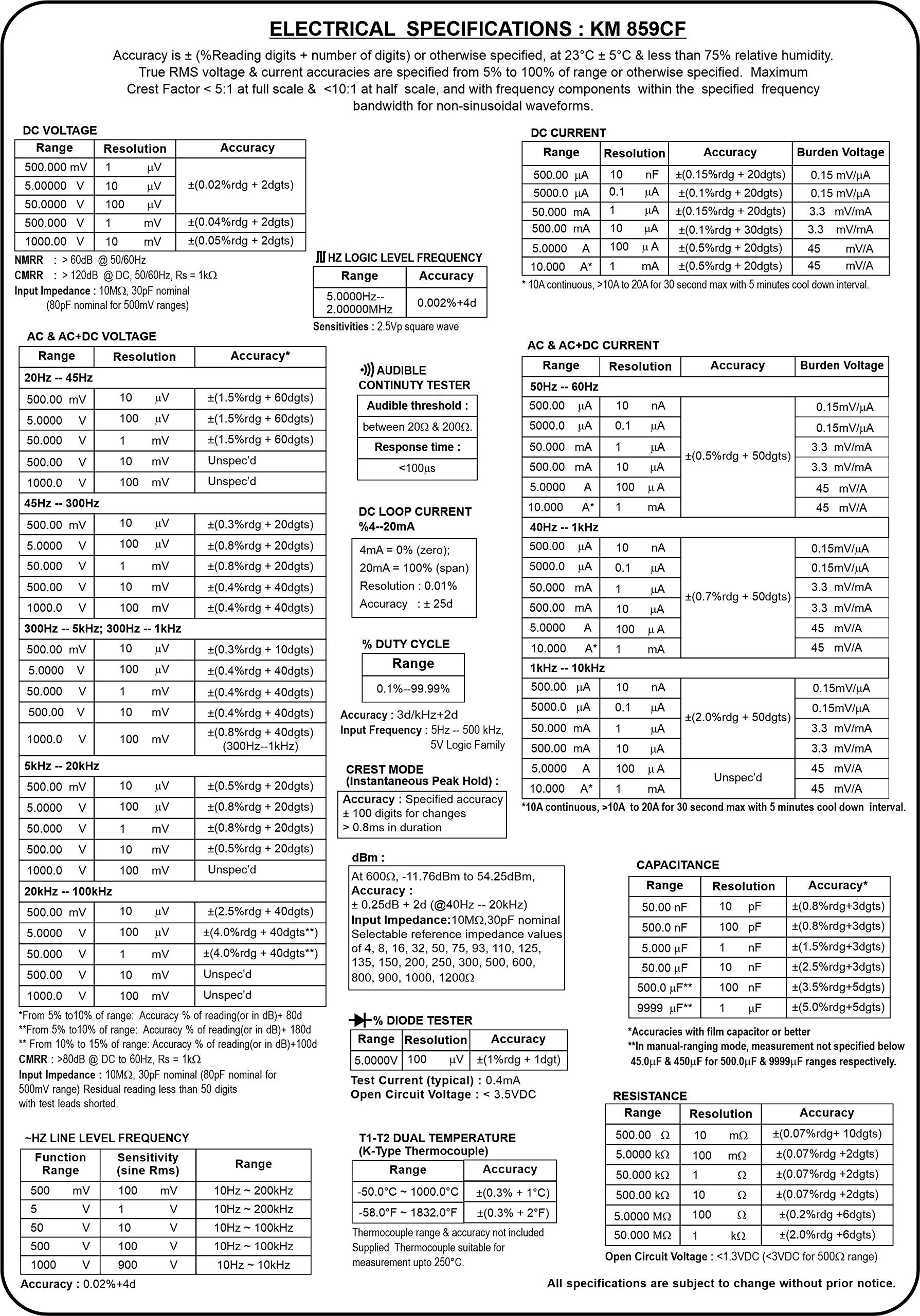

DC Voltage Basic Accuracy 0.02%Fully AutorangingBacklighted display.T1-T2 differential Temperature readings.Fast Data Measurement 5/secData Hold, Diode Test & Duty CycleAudible & Visible input warning.Auto Power OffSensing : AC, AC + DC True RMS; Frequency Bandwidth 100kHz (V) & 10kHz (A)Display : 4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC Voltage & 6 digits 999,999 counts for HzUpdate Rate : 4-4/5 digits fast mode : 5 per second nominal; 5-4/5 digits stable mode : 1.25 per second nominal; 42 Segments Analog Bar graph :60 per second max.Polarity : AutomaticLow Battery : Below approx. 7VOperating Temperature : 0 C to 45 CRelative Humidity : Maximum 80% R.H. For Temperature upto 31C decreasing linearly to 50% R.H. at 45oCPollution Degree : 2Storage Temperature : -20 C~60 C, Altitude : Operating below 2000mTemperature Coefficient : nominal 0.1 x (specified accuracy) / °C @ (0C -- 18C or 28C -- 40C), or otherwise specifiedPower Consumption : 6mA typicalApo Timing : Idle for 17 minutesApo Consumption : 30µA typicalPower Supply : Single Alkaline 9V battery.
