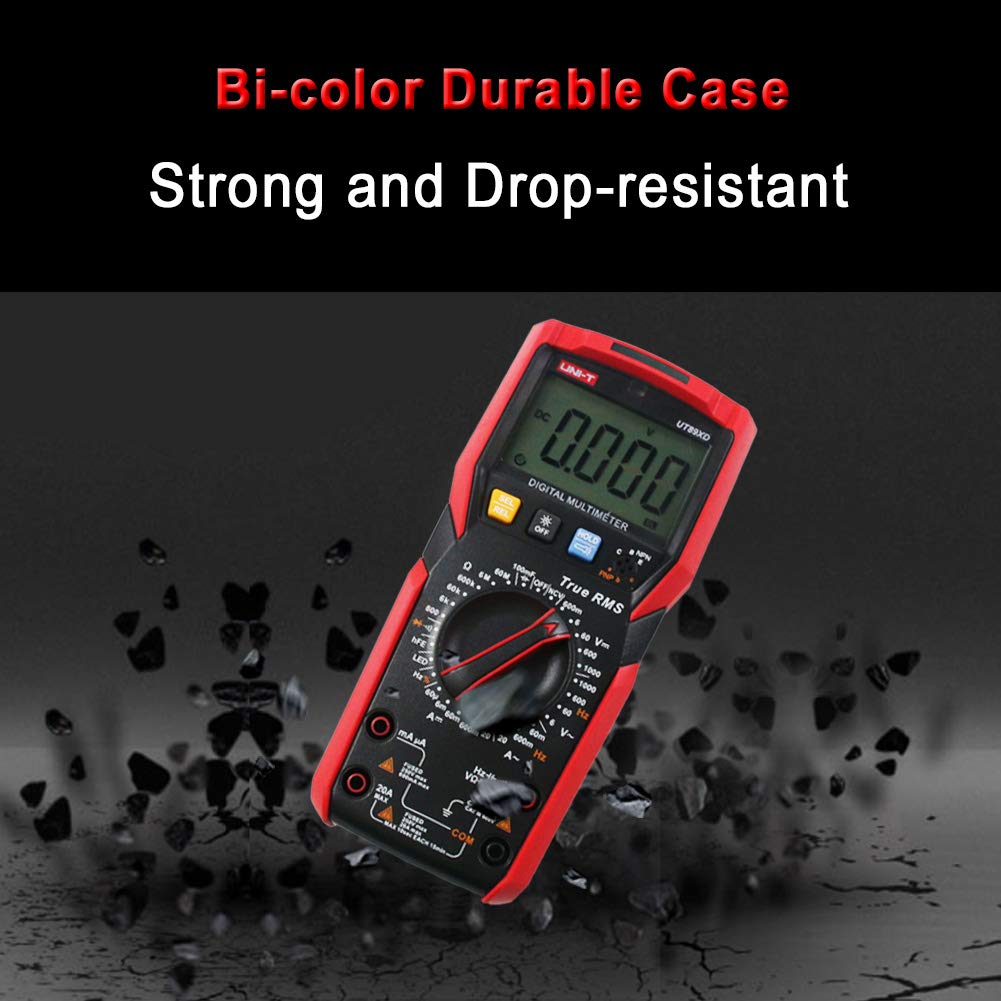

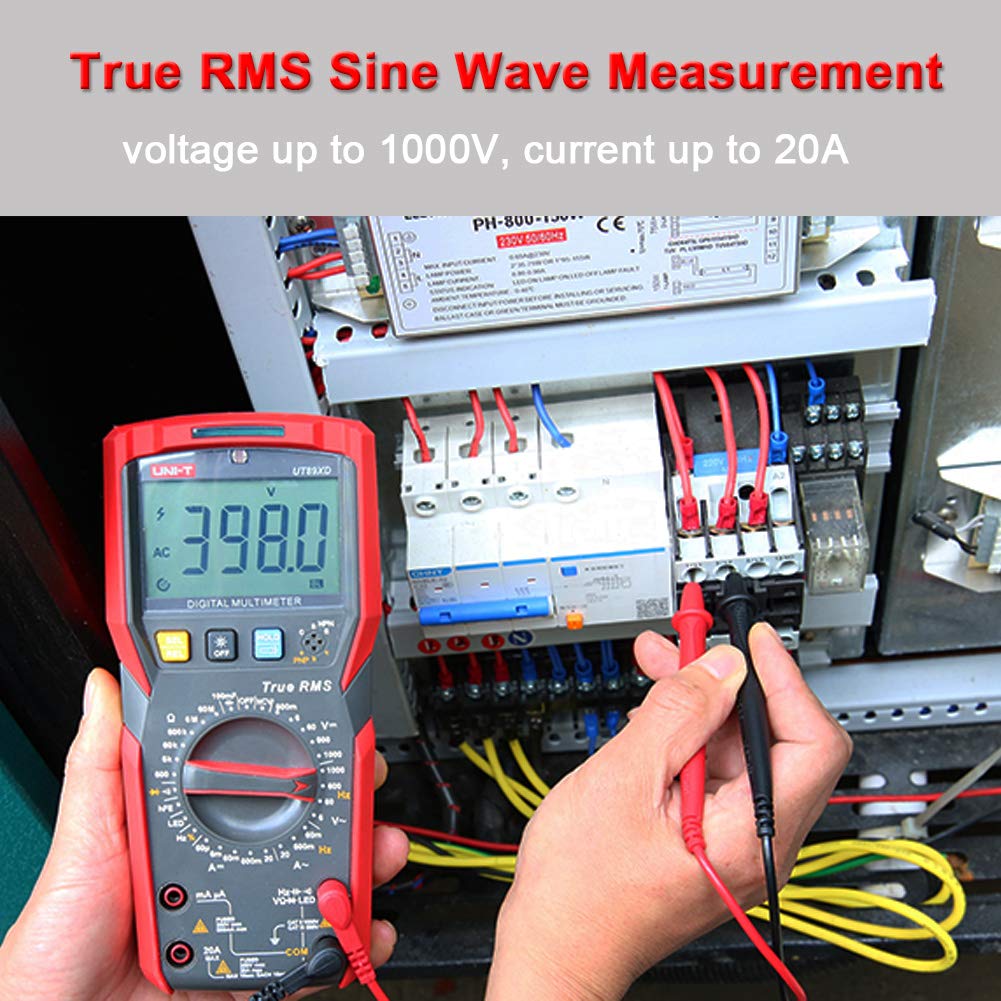

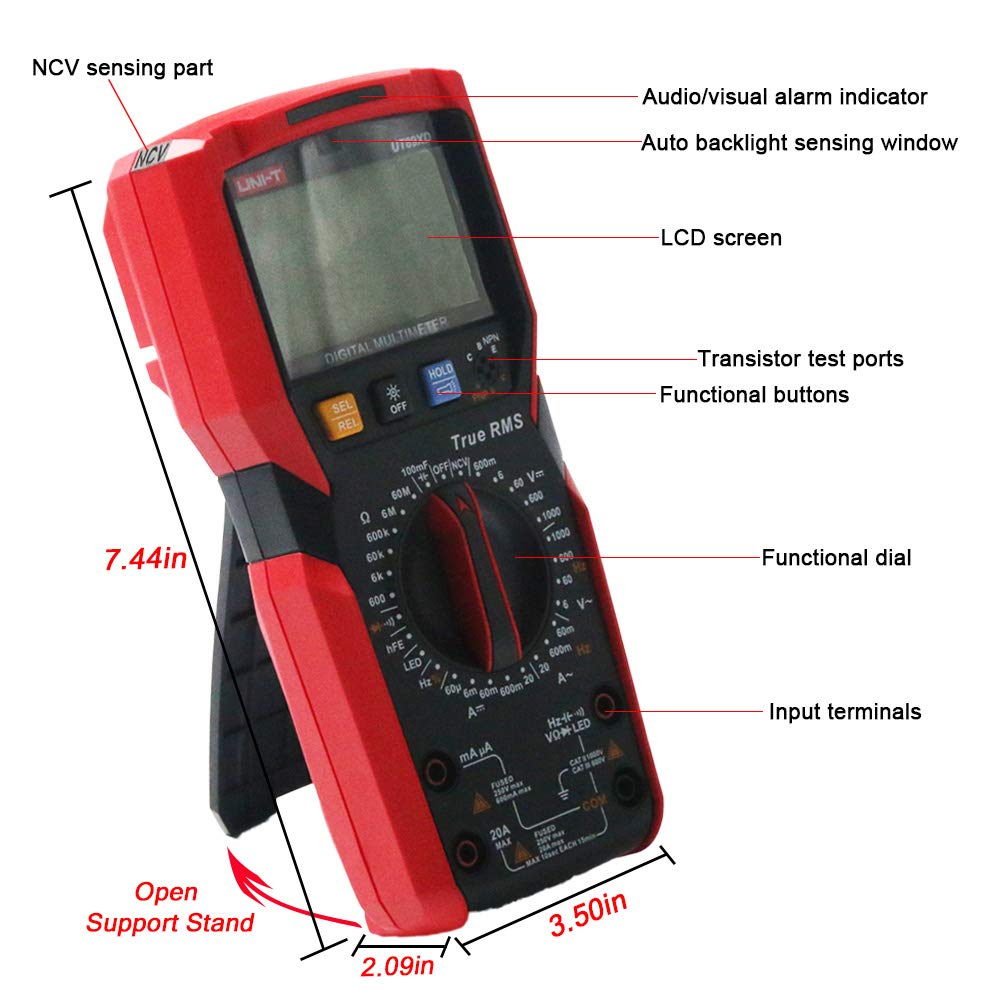

UNI-T UT89X UT89XD True RMS Professional Digital Multimeter Tester NCV 20A Current AC DC Voltmeter Capacitance Resistance Tester UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions. Features 1. 1000V AC/DC; 20A AC/DC 2. True RMS, 6000 count 3. Dual range NCV test which quickly identifies neutral and live wires through light intensity 4. LED measurement (UT89XD) 5. Audible/visual alarm 6. Capacitor charging indicator 7. Ergonomic design 8. Double injection molding 9. 1m drop proof 10. Flashlight; Auto backlight Specifications DC voltage: 600mV/6V/60V/600V/1000V ±(0.5%+2) AC voltage: 6V/60V/600V/1000V ±(0.8%+5) DC current: UT89X : 60µA/60mA/600mA/20A ±(0.8%+8); UT89XD: 60µA/6mA/60mA/600mA/20A ±(0.8%+8) AC current: 60mA/600mA/20A ±(1%+12) Resistance: 600O/6kO/60kO/600kO/6MO/60MO ±(0.8%+3) Capacitance: 6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF/100mF ±(2.5%+20) Frequency: 9.999Hz/9.999MHz ±(0.1%+4) Duty cycle: 0.1%~99.9% ±(2%+5) Temperature: -40?~1000? ±(2%+4) Temperature: -40?~1832? ±(2%+8) Display count: 6000 Sampling rate: 3 times/s True RMS: vAC voltage frequency response: 45~1000Hz AC current frequency response: 45~1000Hz Live wire test: UT89X: vLED test: UT89XD: vAudible/visual alarm: V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) Battery not included
