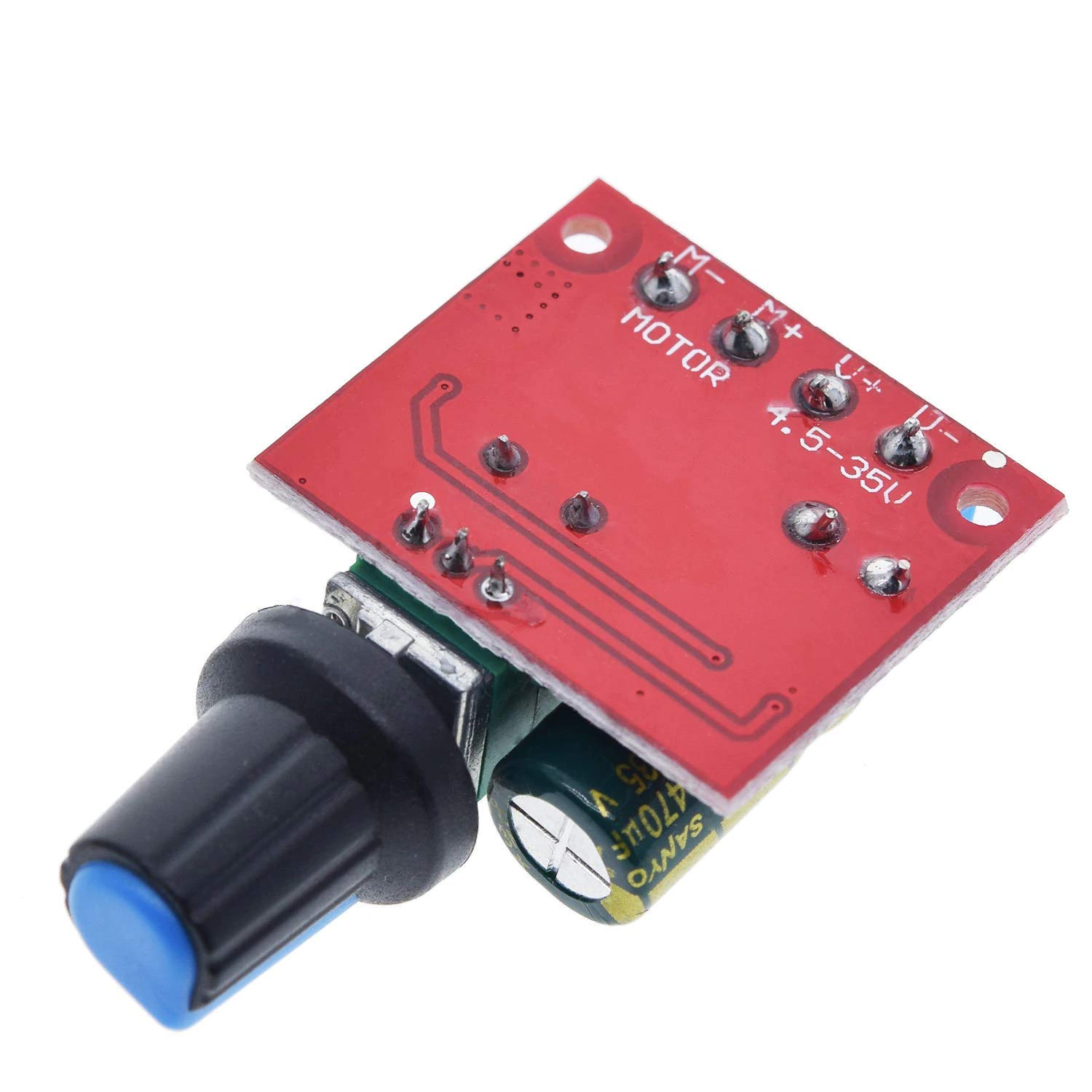

xcluma PWM DC Motor Controller 5V-35V 5A Switch Function LED dimmer Speed Control Module
Brand: xcluma
Product Overview
xcluma PWM DC motor controller 5V-35V 5A switch function LED dimmer speed control module
Product Details
Operating voltage: DC4.5V-35V Output current: 0-5A Output power: 90W (max) PWM frequency: 20khz
Size: 30mm x 26mm x 14mm
DC motor controller input for the DC, can not be directly connected to the AC (for example: 220V AC 220V), otherwise it will burn! The positive and negative terminals of the DC power supply are not reversed, otherwise the controller may be damaged.
The motor can be either positive or negative. When the direction of operation and expectations do not match, you can adjust the direction of the line order.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
