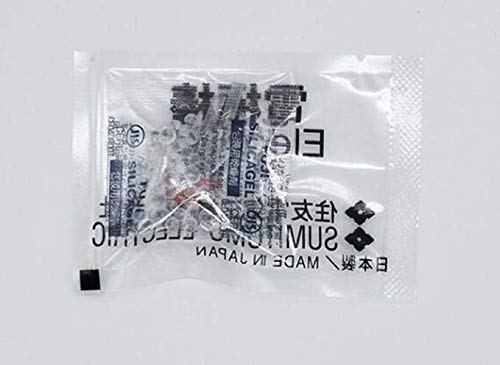

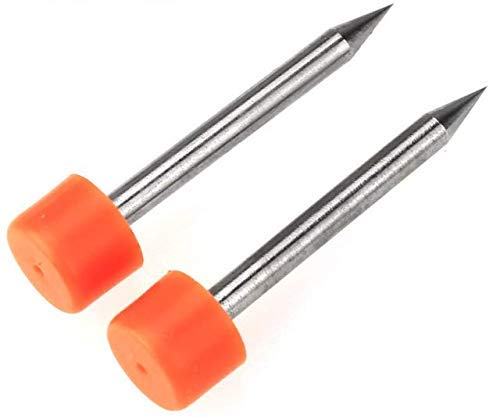

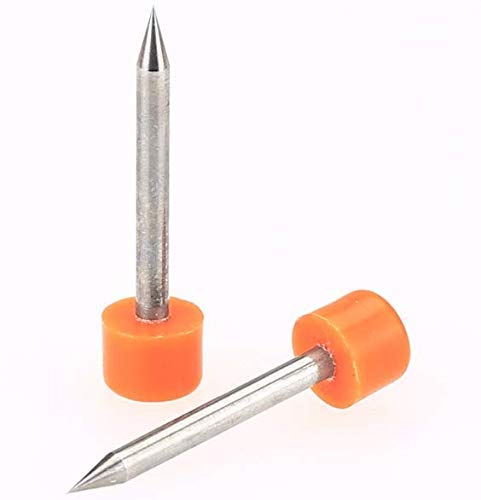

1 Pair ER-10 electrodes For Sumitomo TYPE-39/Typ-66/typ-81C 600C 400S Fiber splicer Splicing Machine Electrodes Free shipping
Brand: WPT
Product Overview
Product Attributes For Sumitomo electrodes Fiber Fusion Splicer Original and Brand new Sumitomo ER-10 Optical Electrodes for Sumitomo TYPE-39 TYPE-81C/TYPE-25 Splicing Machine Original >For Sumitomo ER-10 Electrodes >good quality and long-term to use >Vused for Type-39/81C fusion splicer >optic electrod >Discharge times: 4000 times
Product Details
First, must confirm the welding machine in a shutdown state, take the electrode chamber protective cover, screw loosen the fixed electrode extraction electrode; then release the electrode silk top, remove the lower electrode.
Secondly, the installation of new electrode, the operation steps and the method of removing the electrode is the opposite, in turn, can be operated. The two electrode tip clearance requirements for : 2.6 + / - 0.2 mm.
Finally, in the assembly process, not can touch the tip of the electrode and to prevent damage to the electrode, and avoid electrode fall into the machine internal damage caused by. After replacing the electrode, the arc position should be calibrated.
100% Original New Sumitomo Electrodes
