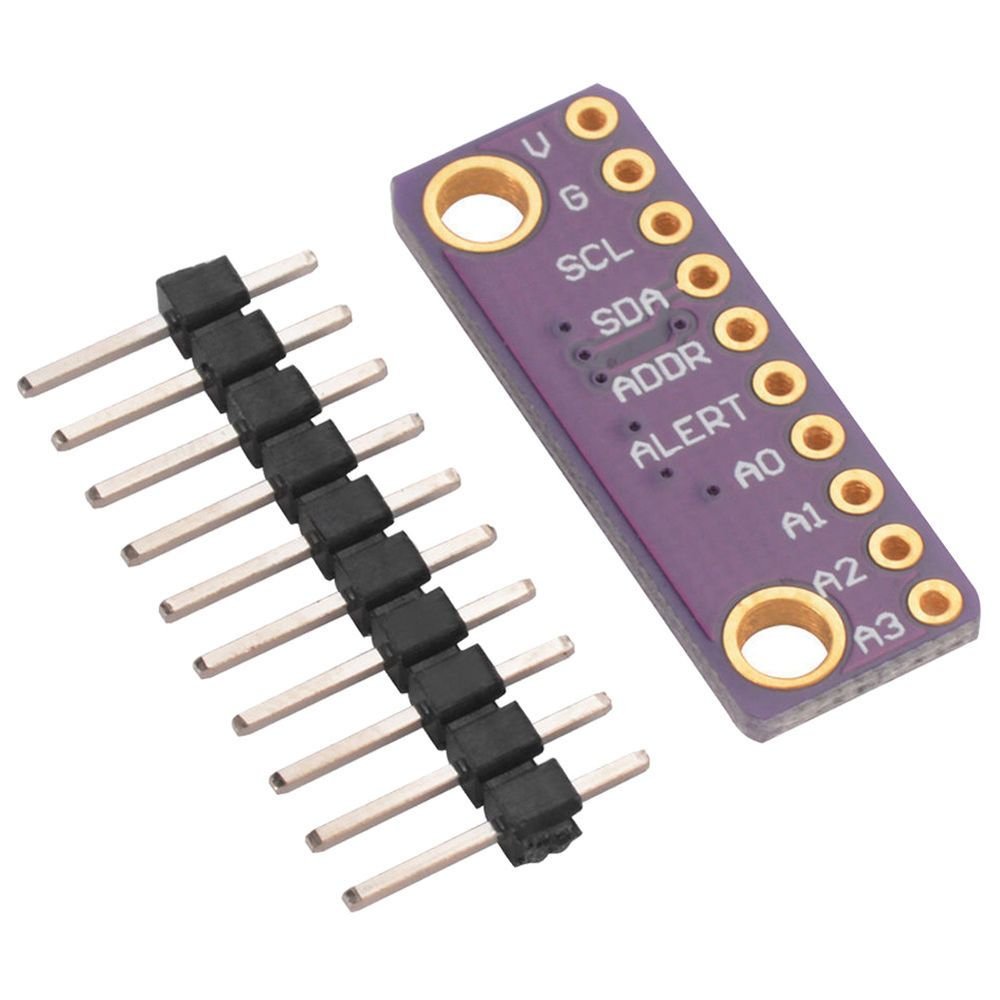

xcluma ADS1015 Ultra Small 12 bit Precision Analog-to-digital Converter ADC development Board Module
Brand: xcluma
Product Overview
For micro controllers without an analog-to-digital converter or when you want a higher-precision aDC, the ads1015 provides 12-bit precision at 3300 samples/second over i2cthe chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. The chip's fairly small so it comes on a breakout board with ferrites to keep the avdd and agnd quiet. The address can be changed to one of four options, so you can have up to 4 ads1015's connected on a single 2-wire i2c bus for 16 single ended inputs.
Product Details
For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1015 provides 12-bit precision at 3300 samples/second over I2C
The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.

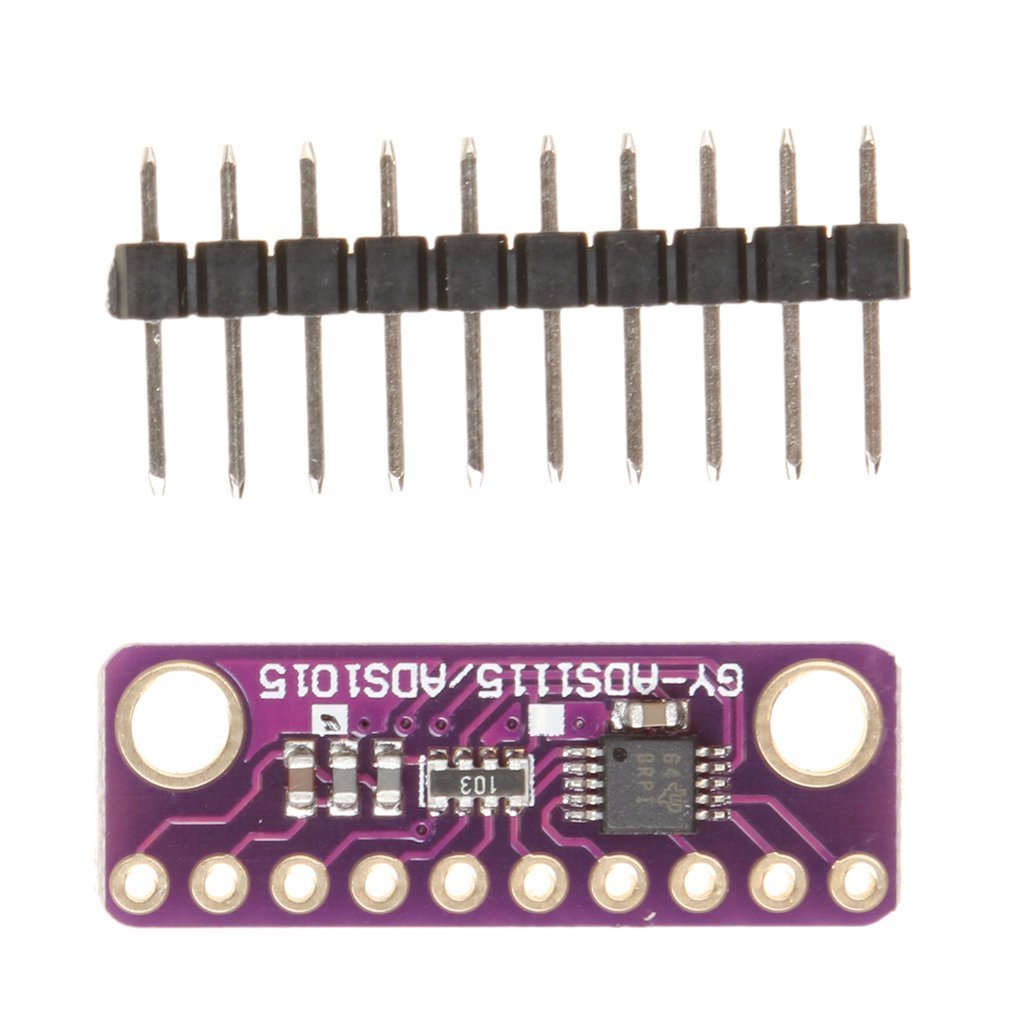

The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet.
Interfacing is done via I2C.
The address can be changed to one of four options,so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs.
