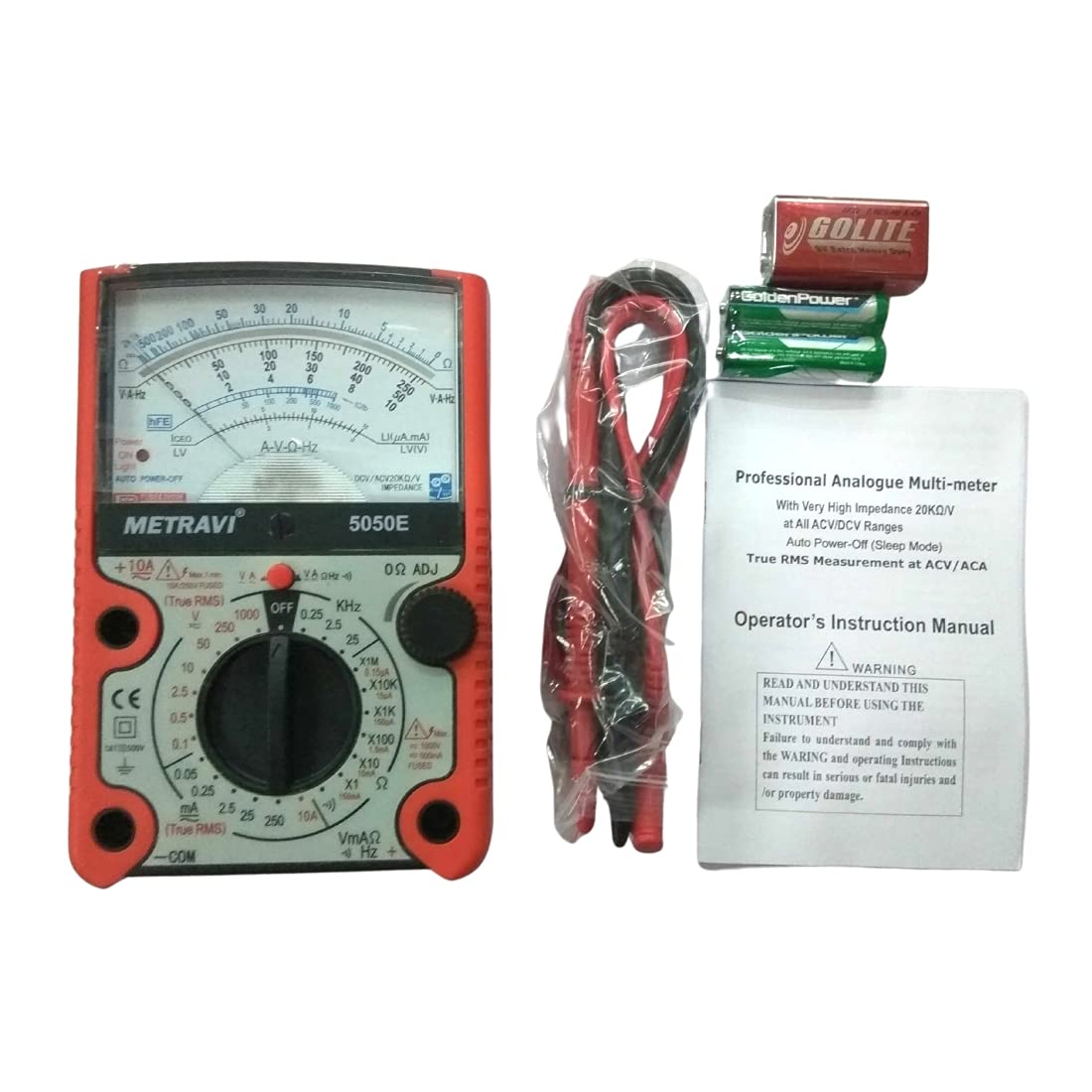

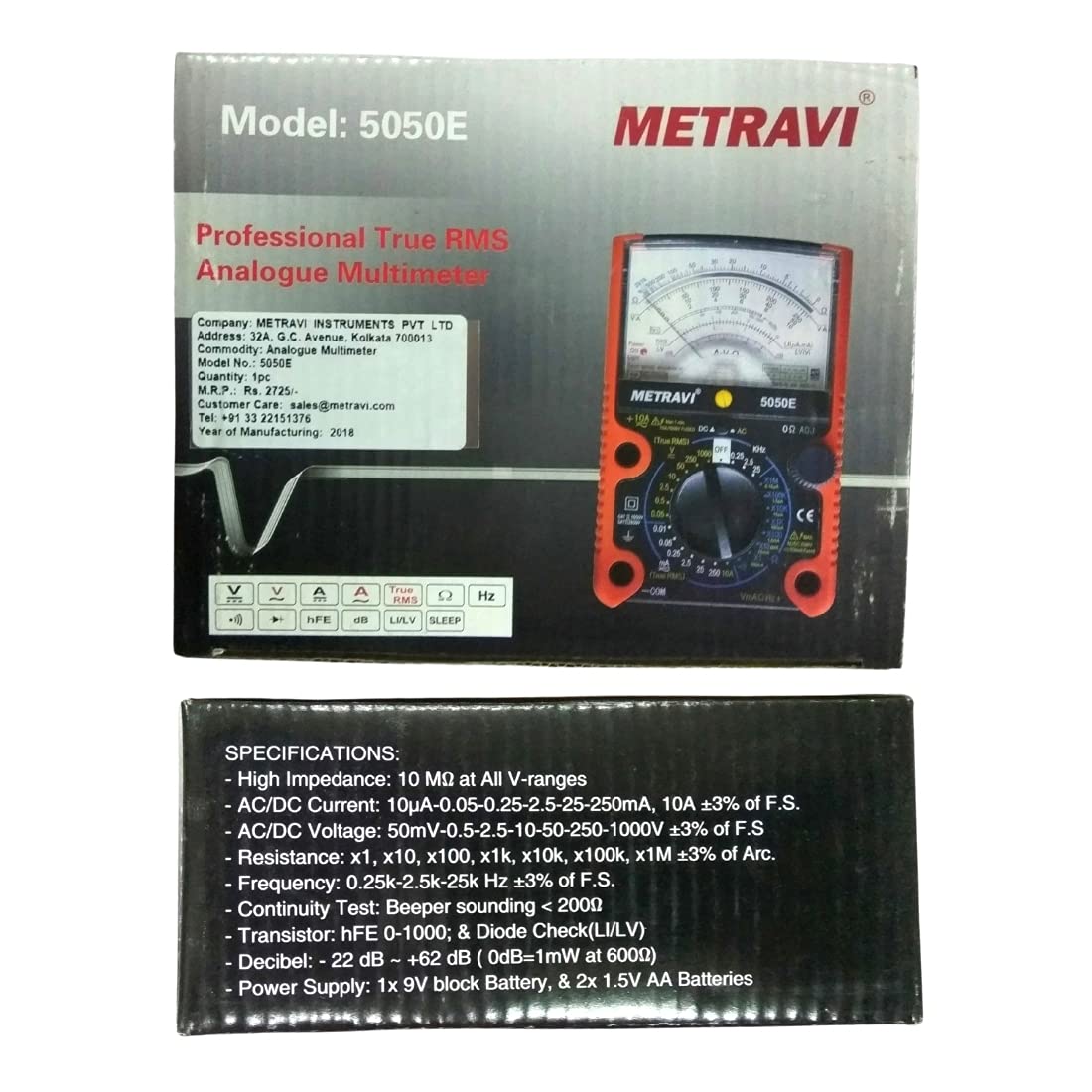

Metravi 5050E Analogue TRMS Multimeter with Overload Protection
Brand: METRAVI
Product Overview
Measures AC/DC Voltage up to 1000V, AC/DC Current up to 10A, Resistance up to 2000M.Ohms, Frequency up to 25kHz, Transistor Testing, Diode Testing and audible continuity testing.
Product Details
4-1/2” Meter, Mirrored 90° ARC Scale Extra Rugged, Safety Design Complies to UL 1244 & VDE 0411. Overload protected movement , Fuse & Diode Protection.
10M.Ohms input impedance for DC and 1M.Ohms for AC. P-P value reading.
DC voltage : 0 – 0.3/1.2/12/30/120/300/1200V ±0.15/0.6/6/15/60/150/600V at center; Accuracy : ± 2.5%. AC Voltage : RMS 0 – 3/12/30/120/300/1200V; Accuracy : ± 3.5%.
Peak – Peak : 0 – 8.4/33/84/330/840/3300V RMS. 1200V (3300Vp-p) on Separate Jack. Decibel : -10dB to +30dB. Fuse Protection and Double FET Protection.
DC Current : 0 – 0.1m/0.3m/3m/30m/300m/12A; Accuracy : ± 2.5%. AC Current : 0 – 12A; Accuracy : ± 3.5%. Resistance : 0 - 1kΩ/10kΩ/100kΩ/1MΩ10MΩ/1000MΩ.
